Zipline Harnesses

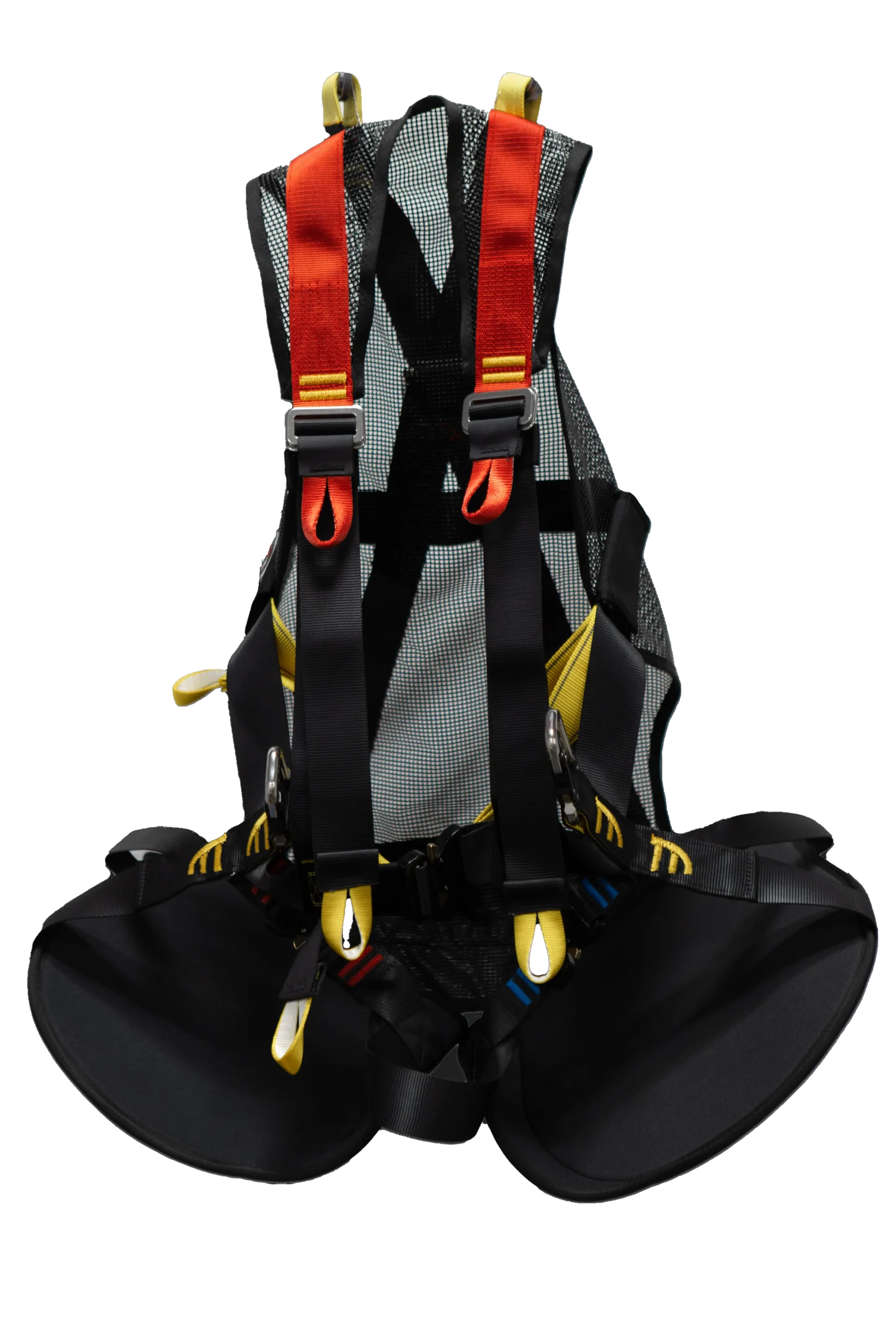

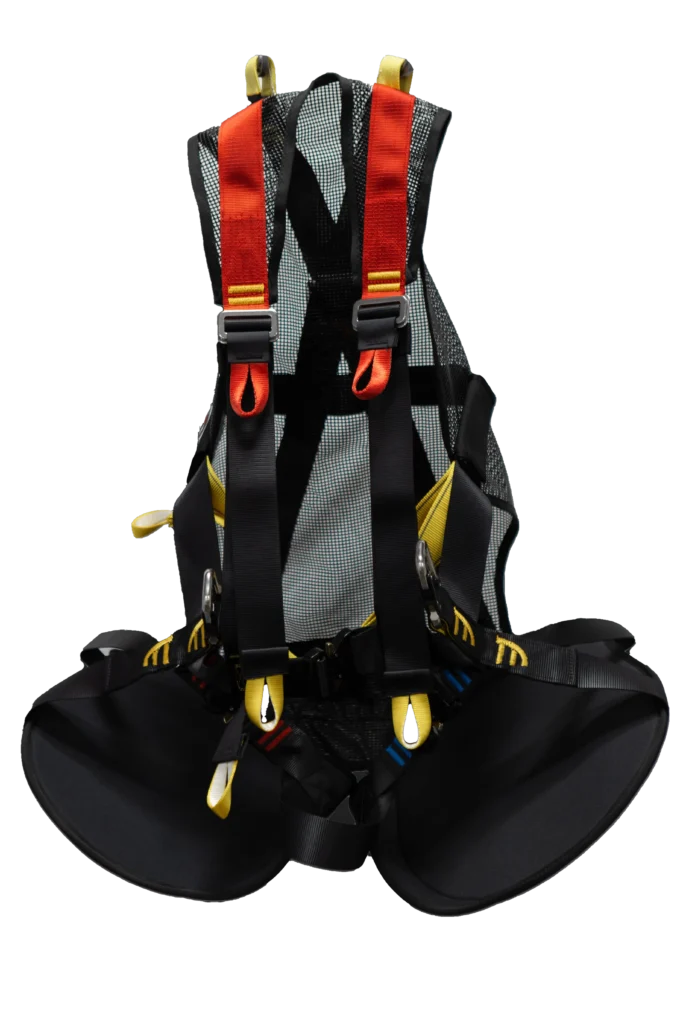

SkyTECH Twin-Harness is the ONLY DOSH-APPROVED two-point harness in commercial production. The first forward-facing zipline harness engineered for speed allowing flyers to enjoy the thrill of the ride with the security of a safe high speed stop. A revolutionary zipline harness, engineered to work with the skyTECH Rocket, and skyTECH Turbine trolleys with flying speeds in excess of 140 km/h (87m/h) with high speed braking.  Its dual attachment points keep flyers in a hands free, forward facing flight allowing safe brake entries with minimal upswing every time.

The Twin-Harness can also be used in conjunction with most Giant Swings using a seated configuration.

Robust Mesh and Webbing Construction

• Long life span, easy to clean with very low maintenance
• Color-coded for easy differentiation between sizes
• 45mm Polyester webbing for strength and comfort

High Grade Hardware​

• Load rated D-Ring attachment
• Steel adjuster buckles with polyester coating

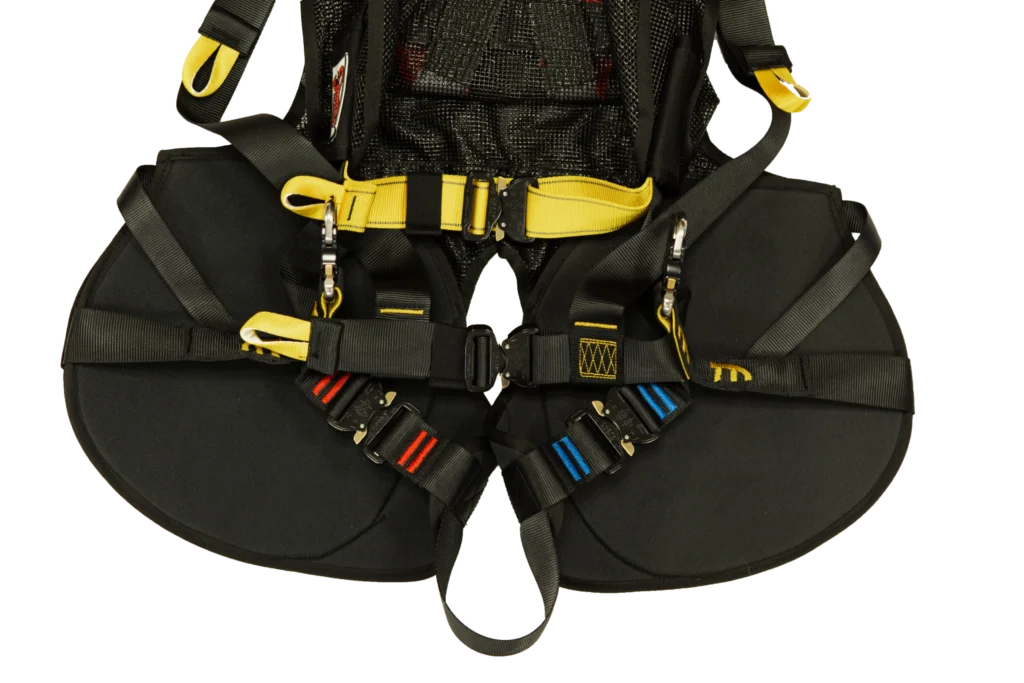

• Aluminum quick-release buckles allow for fast and easy donning.

​
Additional Security

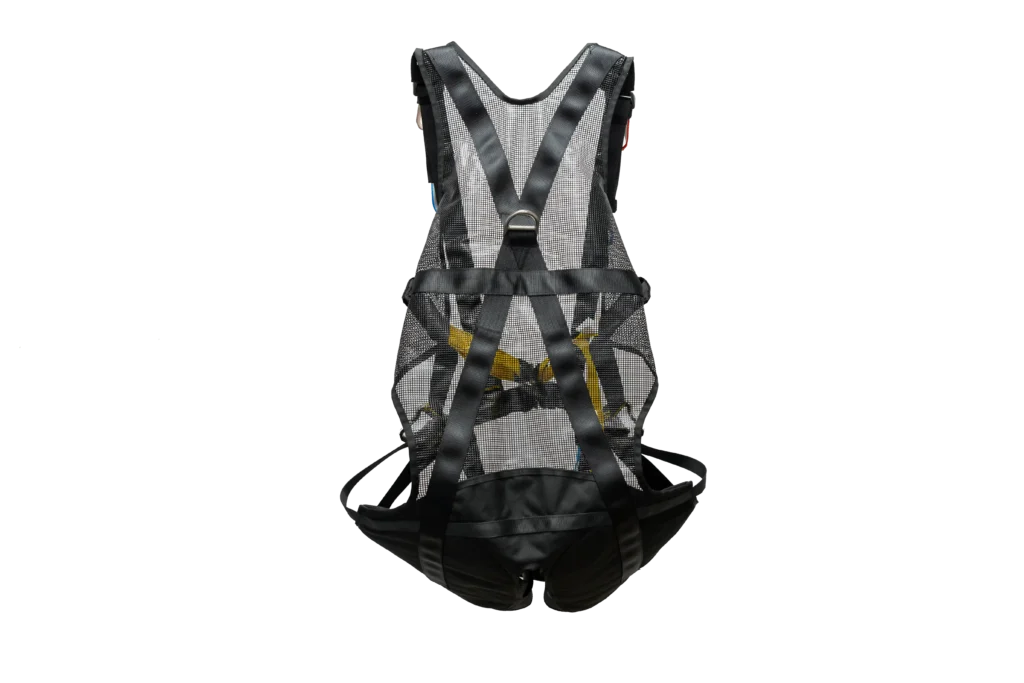

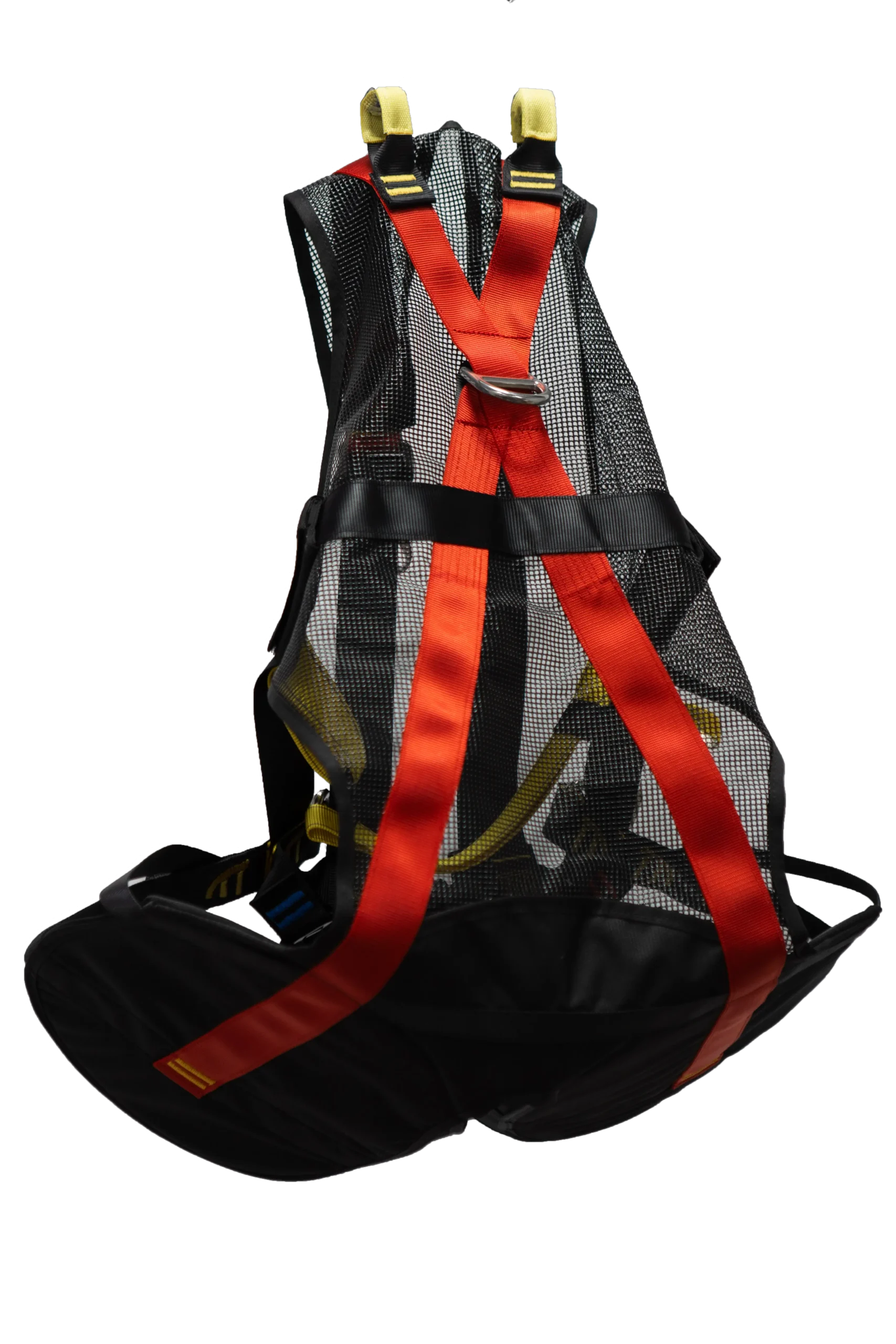

Rear D-Ring attachment point for travel restraint on takeoff & landing decks as well as secondary connection to trolley during flight.

Dual Attachment Points for Directional Flight
Twin connections allows the guest to fly in a forward-facing configuration for the entirety of their flight, allowing them to truly enjoy the views!

Flyer Comfort

• Leg & back support for comfort throughout duration of flight
• Light weight, & comfortable
• Put on and off with extreme ease
• NO leg adjustments preventing awkward moments between guests & guides

​
Speed of Operation

• Flyer volume increases 10% with quick strap adjustments

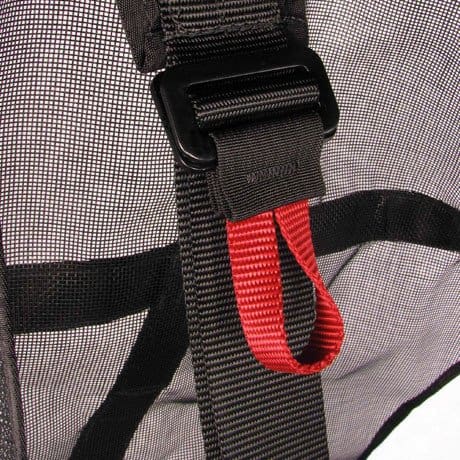

• Color-coded shoulder strap pull-loops to simplify adjustments for operators
• Increase throughput & profits

• DOSH-approved
• Compliant to EN 1651-1999
• Compliant to ASTM F1772-12

Large (black) – Adults

• Minimum user weight: 150 lbs (68 kg)
• Maximum user weight: 300 lbs (136 kg)
• Minimum user height: 5’6″ (1.68 m)

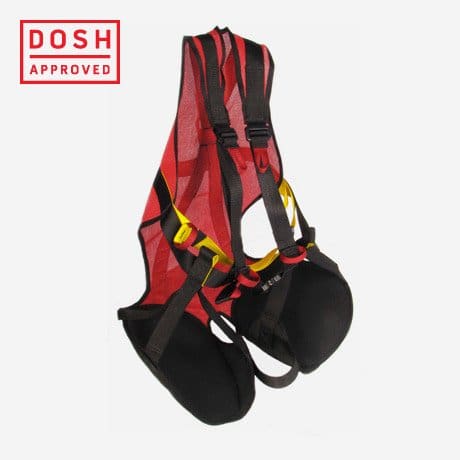

​Medium (Red) – Adults

• Minimum user weight: 100 lbs (45 kg)
• Maximum user weight: 220 lbs (100 kg)
• Minimum user height: 5’0″ (1.52 m)

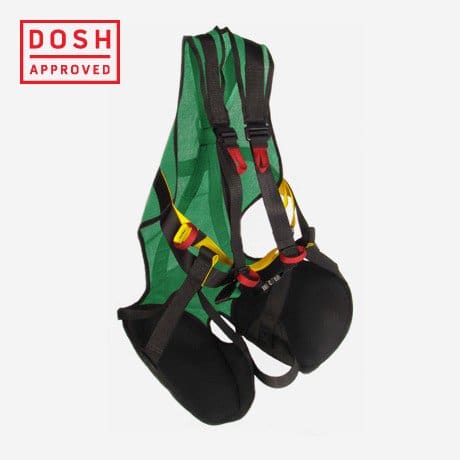

​Small (Green) – Children & Petite Adults

• Minimum user weight: 50 lbs (23 kg)
• Maximum user weight: 150 lbs (68 kg)
• Minimum user height: 4’0″ (1.22 m)

Operator’s Manual – skyTECH Harnesses

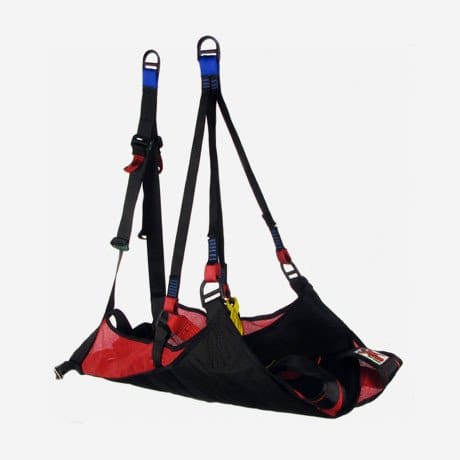

Designed for high speed, horizontal forward facing flights, the SkyTECH Prone Harness can safely propel flyers at speeds up to 120 km/h (75 m/h). The zipline harness features a revolutionary design that enables people to enjoy a thrilling adventure and come to a secure stop from exceptional speeds.

The zipline safety harness, which works with the skyTECH Launcher and Prone Rocket Trolley, has a unique gear design that allows it to be worn comfortably for hours at a time. ​

Adjustments can be made quickly once the unit is attached, thereby increasing user volume at existing sites. By our estimates, the SkyTECH Prone Harness can increase volume by as much as three-fold.

Compared to other commercial zip line supplies of its kind, the prone harness accommodates a wide range of individuals. We offer harnesses for kids and adults alike. The discomfort associated with other prone harnesses has been eliminated as are any difficulties with setup and use. This has quickly given the product the reputation it deserves.

Robust Mesh and Webbing Construction

• Long life span, easy to clean with very low maintenance
• Color-coded for easy differentiation between sizes
• 45mm Polyester webbing for strength and comfort
• Color-coded shoulder straps to mitigate incorrect donning

High Grade Hardware​

• Load rated D-Ring attachments
• Steel adjuster buckles with polyester coating
• Aluminum quick-release buckles allow for fast and easy donning.

Front and Rear Attachment Point for Ease of Operation
Large, front and rear D-rings allows for quick connection to the zipline trolley.

Flyer Comfort

• Leg & torso support and padding for comfort throughout duration of flight
• Light weight, & comfortable
• Put on and off with extreme ease
• Simple, quick release leg adjustments preventing awkward moments between guests & guides

​
Speed of Operation

• Flyer volume increases up to 300% with quick-release connectors and easy strap adjustments
• Increase throughput & profits

• DOSH-approved
• Compliant to EN 1651-1999

Large (black) – Adults

• Minimum user weight: 150 lbs (68 kg)
• Maximum user weight: 300 lbs (136 kg)
• Minimum user height: 5’6″ (1.68 m)

​Medium (Red) – Adults

• Minimum user weight: 100 lbs (45 kg)
• Maximum user weight: 220 lbs (100 kg)
• Minimum user height: 5’0″ (1.52 m)

​Small (Green) – Children & Petite Adults

• Minimum user weight: 50 lbs (23 kg)
• Maximum user weight: 150 lbs (68 kg)
• Minimum user height: 4’0″ (1.22 m)
