Zipline Trolleys

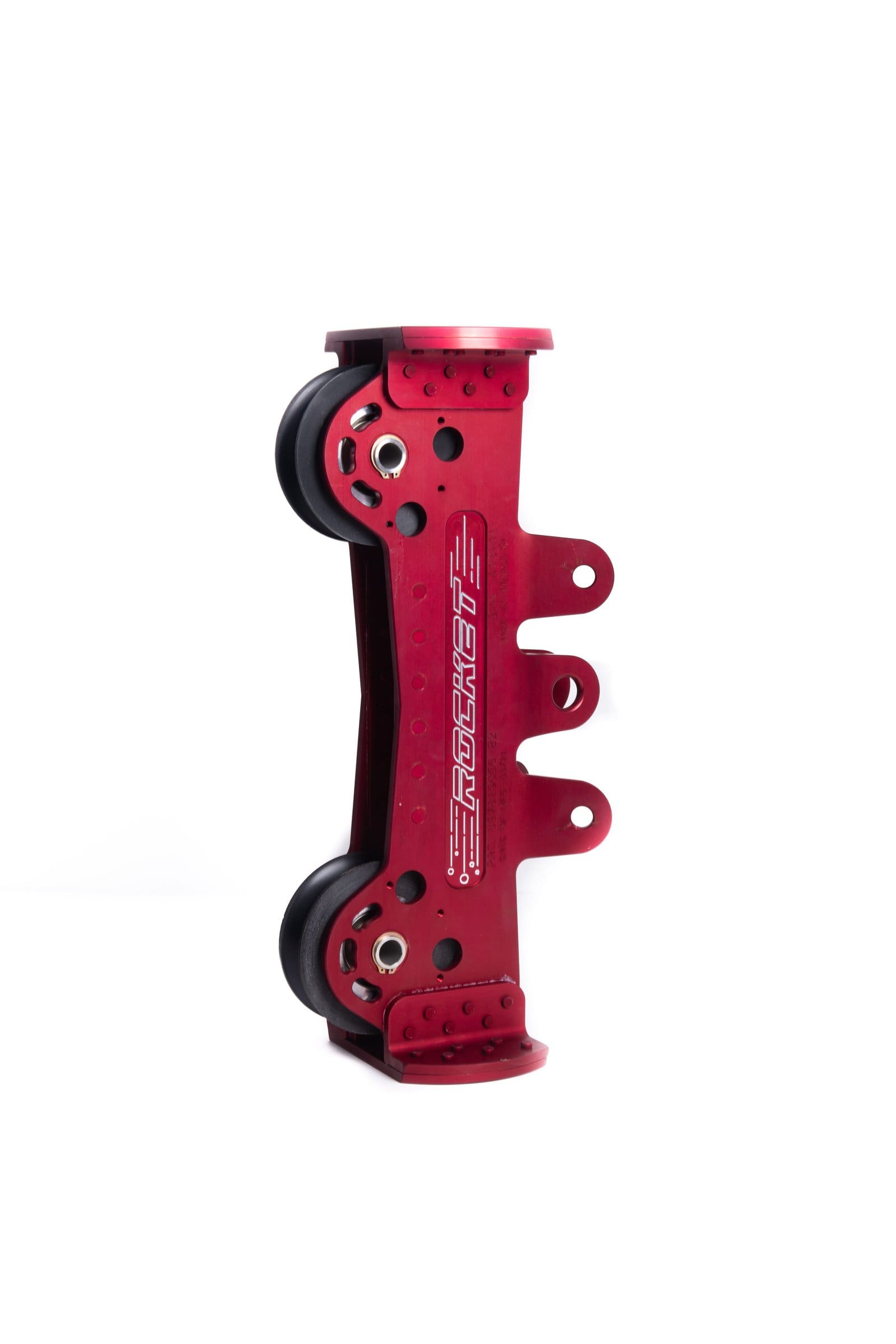

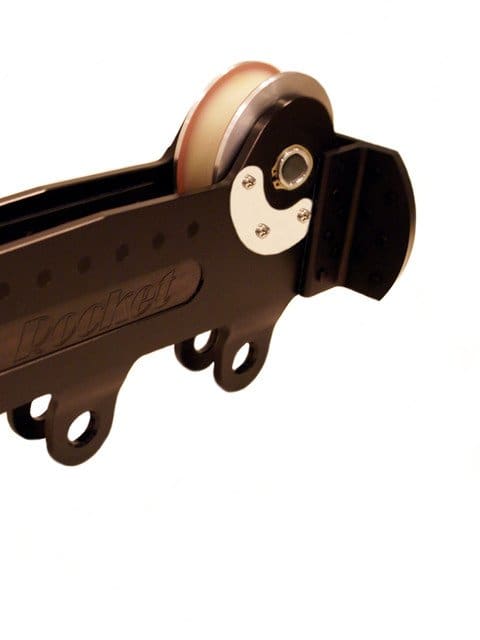

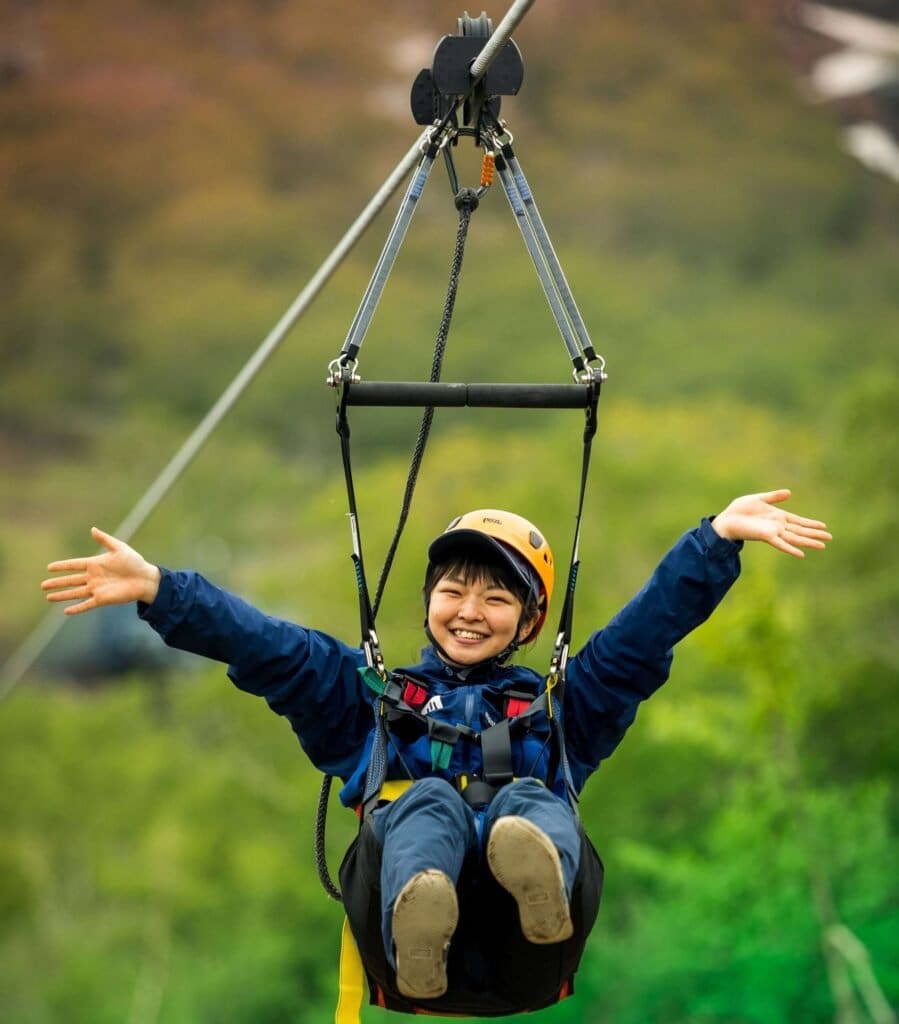

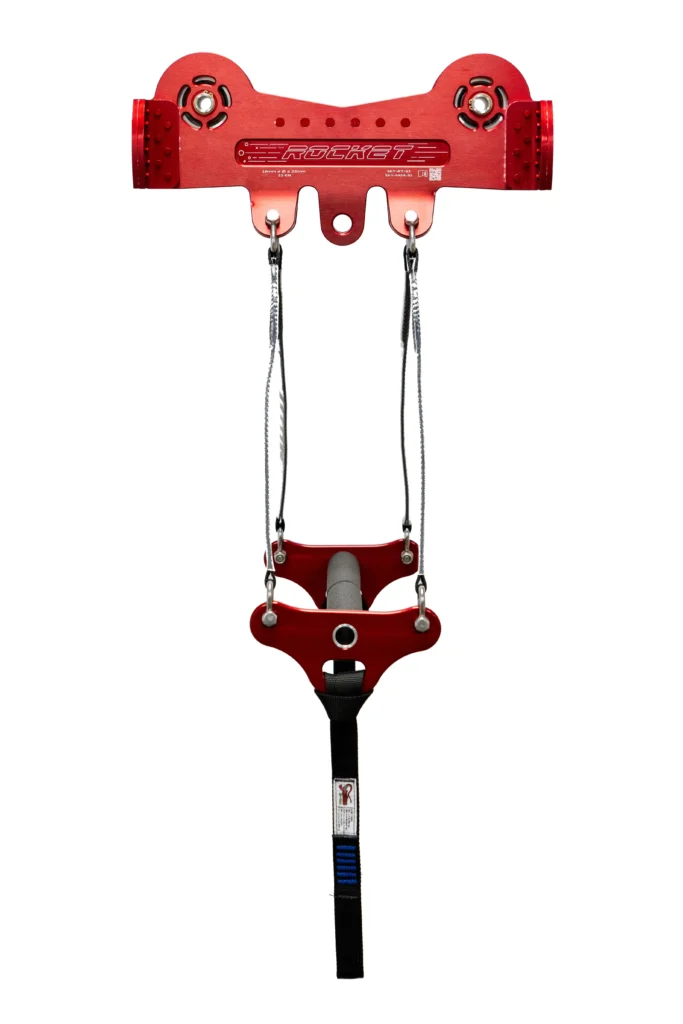

skyTECH Rocket - Seated & Seated M8

Construction

The skyTECH Rocket trolley is made from CNC-machined aluminum and assembled with solid aerospace rivets to eliminate any welds and bolt connections that may represent weak points in the trolley’s structural integrity. Double riveted impact plates can withstand impacts at high velocities and allow for bi-directional flight. Oversized polyurethane wheels with sealed bearings allow for a smooth and quiet ride at high speeds while extending cable life by up to 500% by eliminating metal-on-metal contact.

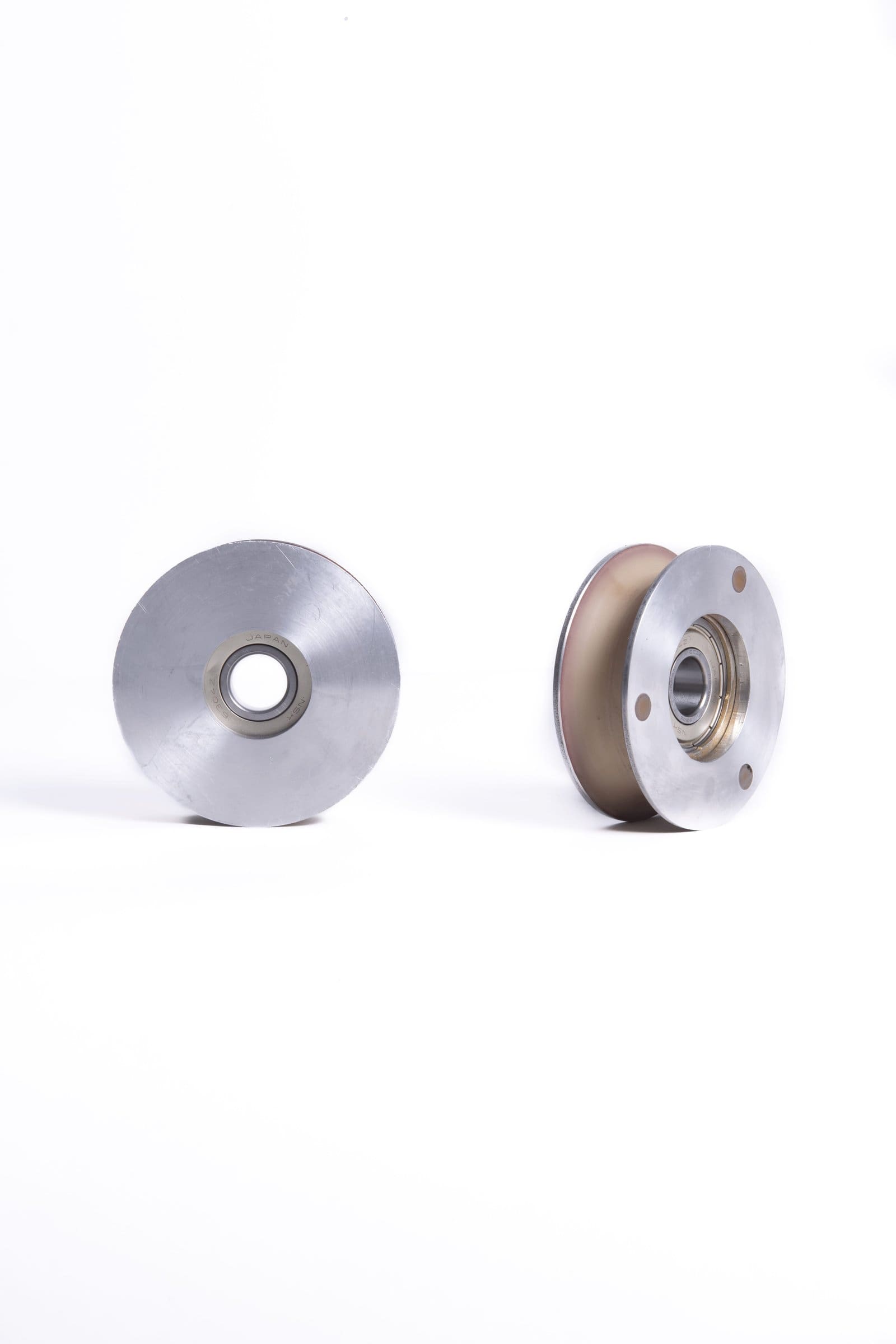

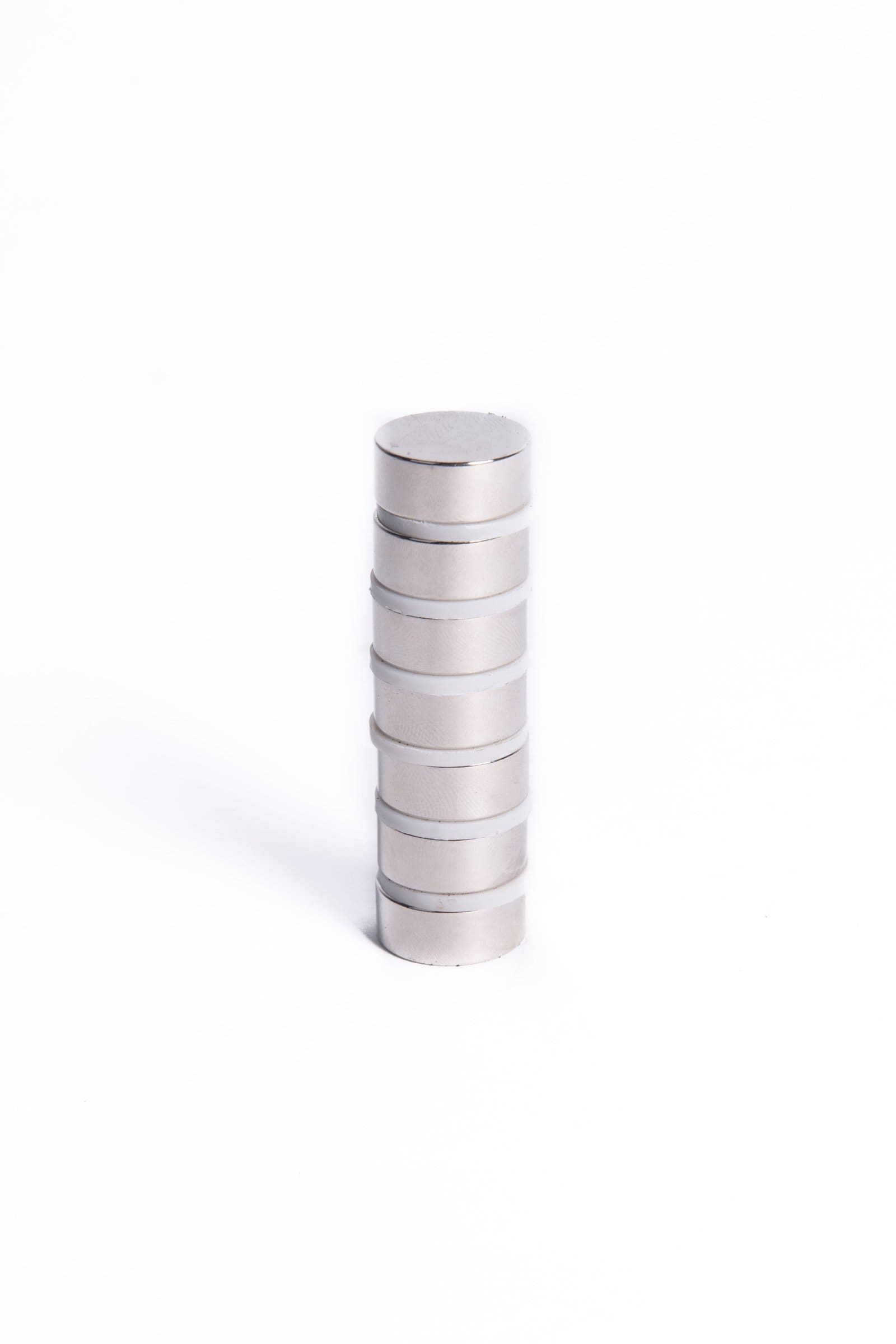

The Rocket Seated trolley is also available in our M8 configuration. The M8 configuration uses similar wheels with aluminum sidewalls and incorporates powerful rare earth magnets to create a braking effect thanks to magnetic eddy-current braking. This allows for up to 17% slower speeds than the regular Rocket trolley.

Rocket trolleys can be ordered in nearly any color at an extra cost upon request with a minimum order quantity of 10 units.

Design

Stainless Steel Hardware

  • The use of stainless steel shackles with threaded bell and locknut ensures they do not back out over time and can withstand any weather.

Seamless Integration

  • The Rocket trolley is designed to work seamlessly with the skyTECH Launcher and Rocket E-Launcher.
  • End plates designed to withstand the impact when contacting skyTECH Catch Block and be retained by its teeth.

Symmetrical Design

  • The Rocket trolley has a symmetrical design allowing it to be placed on the cable in either orientation while still functioning with both the launcher and catch block, making incorrect installation virtually impossible.

Directional Flight

  • Thanks to the use of four equally-spaced mounting tabs, the Rocket trolley keeps the guest in a forward-facing position during the entirety of the ride, allowing for a more scenic and enjoyable experience.

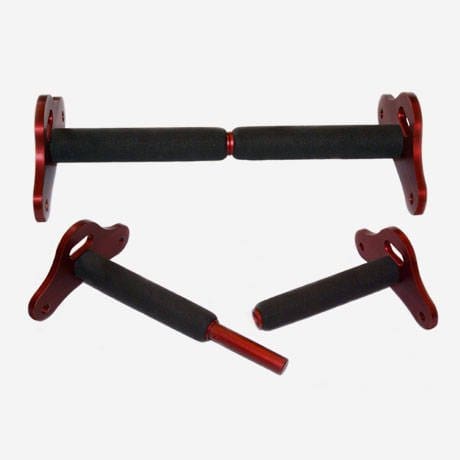

Crossbar Grip

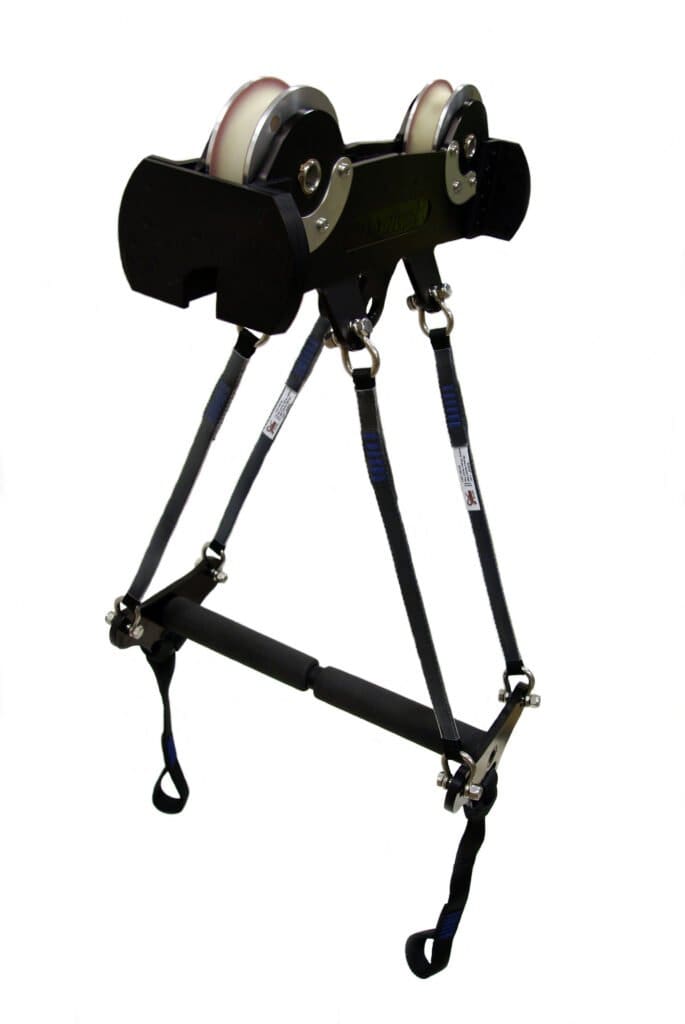

  • The use of a crossbar allows the guest to have a conveniently located grip and support for braking at higher speeds. Its simple design also allows for easy installation on the cable and impossible separation during use.

Secondary Attachment

  • A secondary attachment point is used to connect backup tethers from the guest’s harness as well as provides for complete encapsulation of the cable, eliminating the risk of derailment.
Safety
  • Rated to max load of 22kN.
  • DOSH-approved
Documentation

Operator’s Manual – Rocket Trolley

The SkyTECH Rocket zipline trolley can reach speeds of up to 75 mph (120 km/h) while still ensuring the comfort and safety of riders. In fact, it’s the highest speed commercial zip line trolley on the market.

The only DOSH-approved trolley for ziplines, it is extremely durable and can withstand repeated runs yet maintain a high level of security. Made of 6061 anodized aluminum, the trolley can withstand five years of service before requiring replacement.

Our trolley is designed to work with the skyTECH Twin-Harness, for forward-facing flight. This combination prevents twisting and ensures a smooth ride and comfortable high-speed braking.

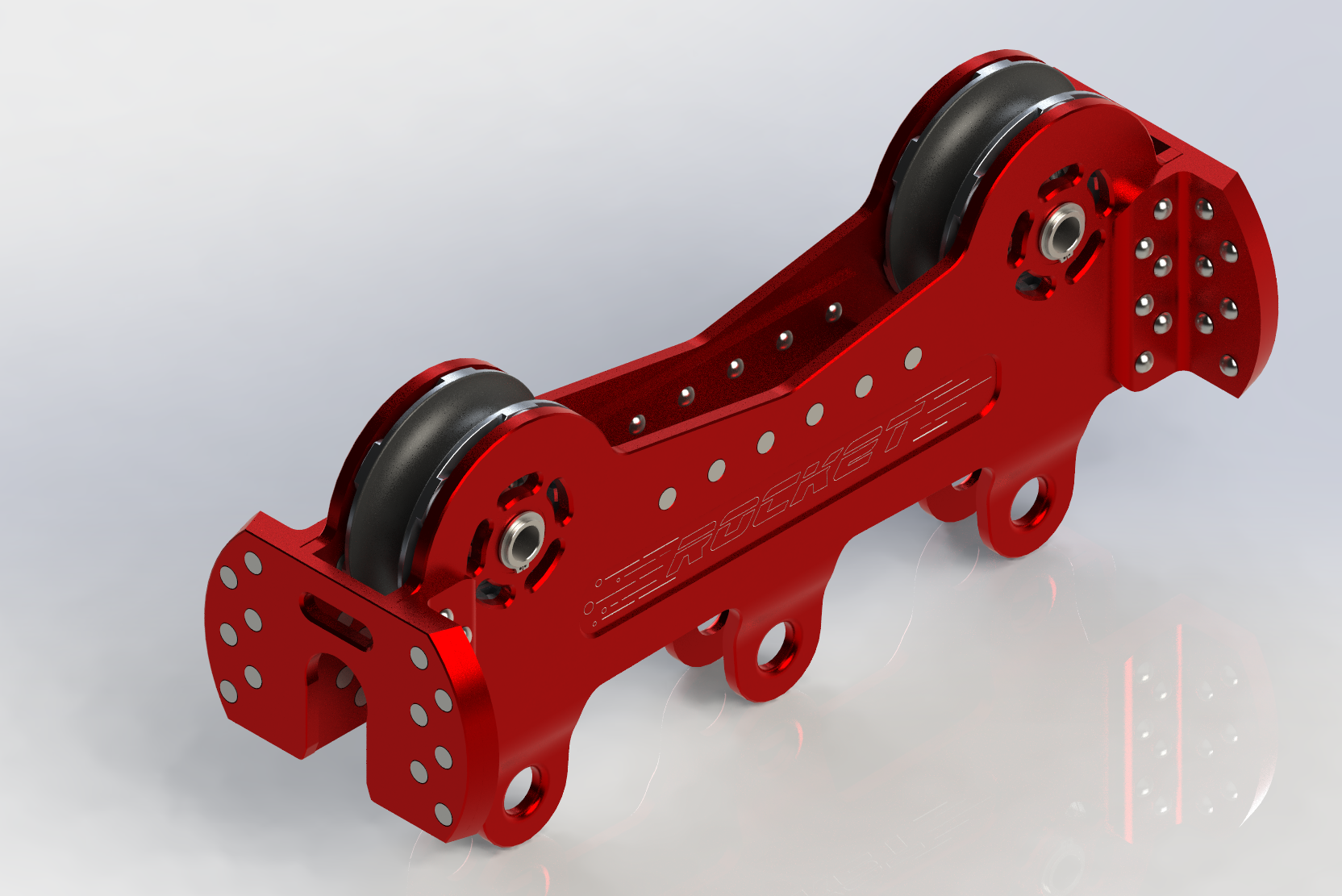

skyTECH Rocket - Prone & Prone M8

Construction

The skyTECH Rocket trolley is made from CNC-machined aluminum and assembled with solid aerospace rivets to eliminate any welds and bolt connections that may represent weak points in the trolley’s structural integrity. Double riveted impact plates can withstand impacts at high velocities and allow for bi-directional flight. Oversized polyurethane wheels with sealed bearings allow for a smooth and quiet ride at high speeds while extending cable life by up to 500% by eliminating metal-on-metal contact.

The skyTECH Rocket trolley is made from CNC-machined aluminum and assembled with solid aerospace rivets to eliminate any welds and bolt connections that may represent weak points in the trolley’s structural integrity. Double riveted impact plates can withstand impacts at high velocities and allow for bi-directional flight. Oversized polyurethane wheels with sealed bearings allow for a smooth and quiet ride at high speeds while extending cable life by up to 500% by eliminating metal-on-metal contact.

The Rocket Prone trolley is also available in our M8 configuration. The M8 configuration uses similar wheels with aluminum sidewalls and incorporates powerful rare earth magnets to create a braking effect thanks to magnetic eddy-current braking. This allows for up to 17% slower speeds than the regular Rocket trolley.

Rocket trolleys can be ordered in nearly any color at an extra cost upon request with a minimum order quantity of 10 units.

Design

Seamless Integration

  • The Rocket trolley is designed to work seamlessly with the skyTECH Launcher and Rocket E-Launcher.
  • End plates designed to withstand the impact when contacting skyTECH Catch Block and be retained by its teeth.

Symmetrical Design

  • The Rocket trolley has a symmetrical design allowing it to be placed on the cable in either orientation while still functioning with both the launcher and catch block, making incorrect installation virtually impossible.

Dual Connection Points

  • Thanks to the use of two spaced-out mounting points, the Prone Rocket trolley keeps the guest in a forward-facing position during the entirety of the ride, allowing for a more scenic and enjoyable experience.
  • The wide spacing minimizes upswing during braking, allowing for a safer and more comfortable experience.
  • Connectors fully encapsulate the cable, preventing any risk of derailment.

Secondary Attachment

  • A secondary attachment point is used to connect backup tethers from the guest’s harness.
Safety
  • Rated to a max load of 22kN
  • DOSH-approved
Documentation

Operator’s Manual – Rocket Trolley

The SkyTECH Rocket Prone trolley can reach speeds of up to 75 mph (120 km/h) while still ensuring the comfort and safety of riders. In fact, it’s the highest speed commercial zip line trolley on the market.

The only DOSH-approved trolley for ziplines, it is extremely durable and can withstand repeated runs yet maintain a high level of security. Made of 6061 anodized aluminum, the trolley can withstand five years of service before requiring replacement.

Our trolley is designed to work with the skyTECH Prone Harness, for forward-facing, head-first flight. This combination prevents twisting and ensures a smooth ride and comfortable high-speed braking.

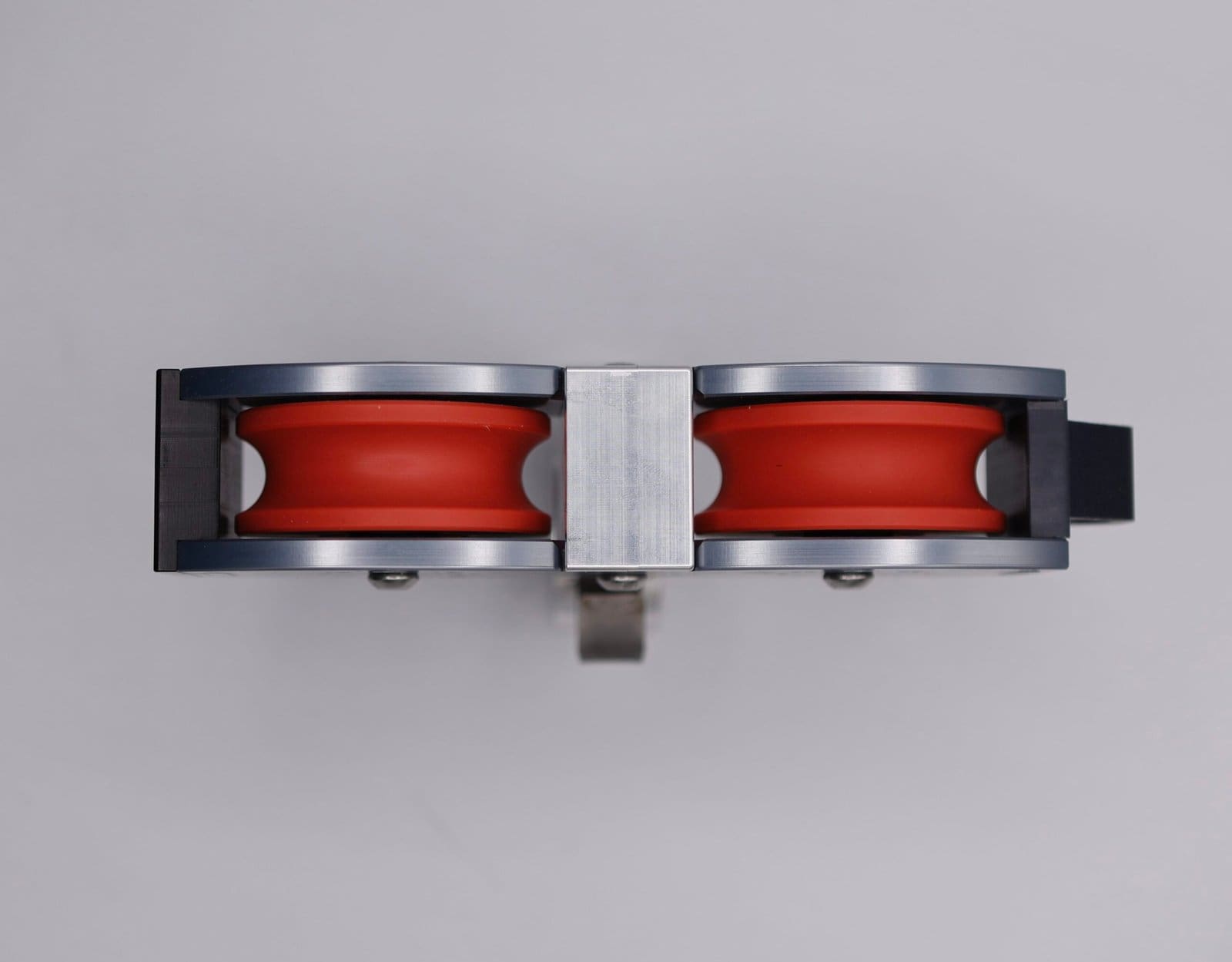

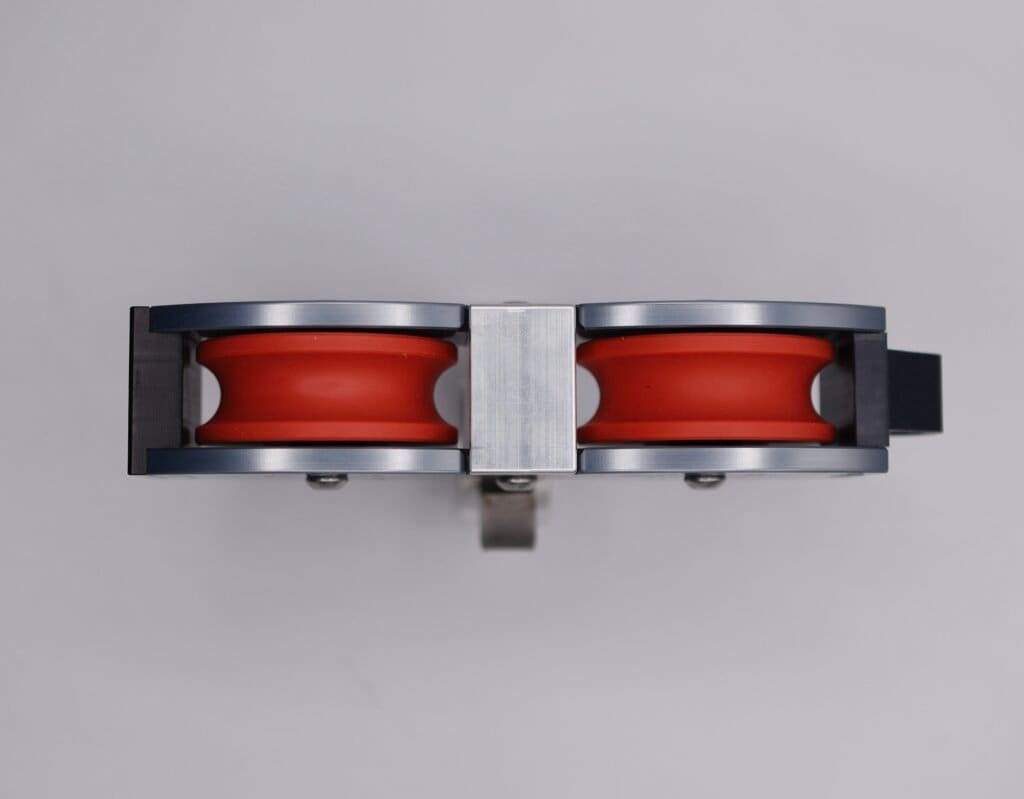

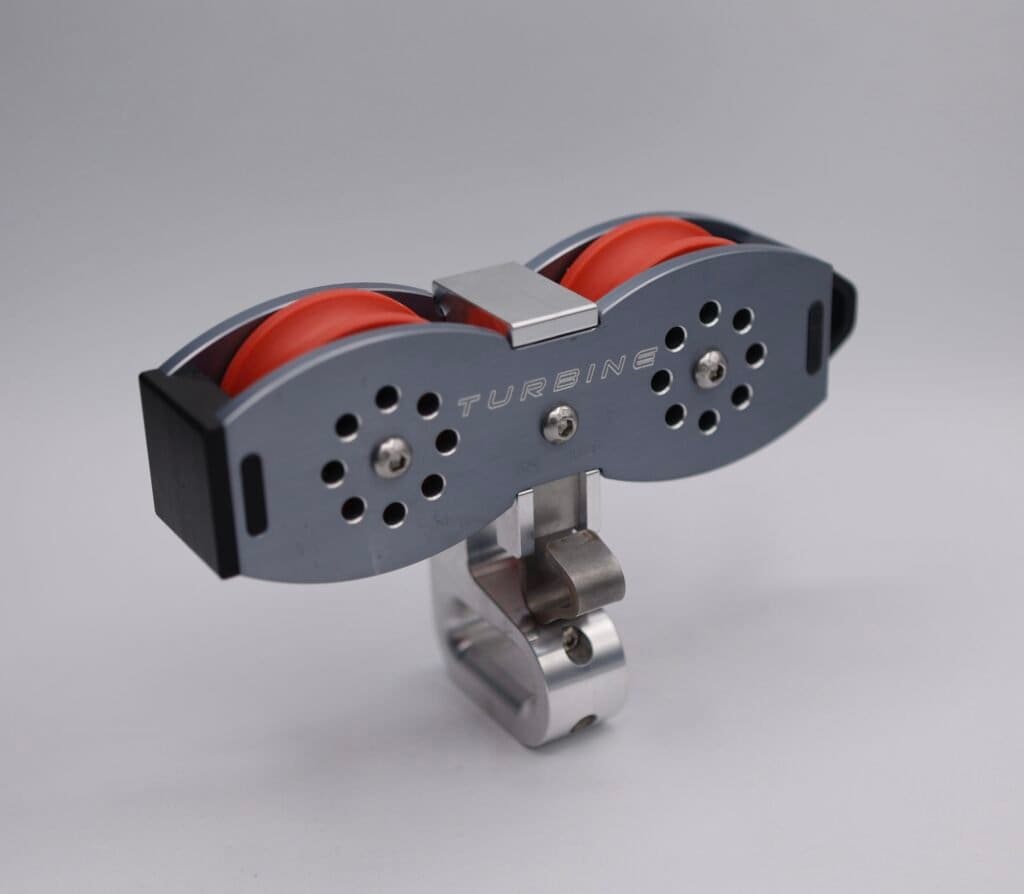

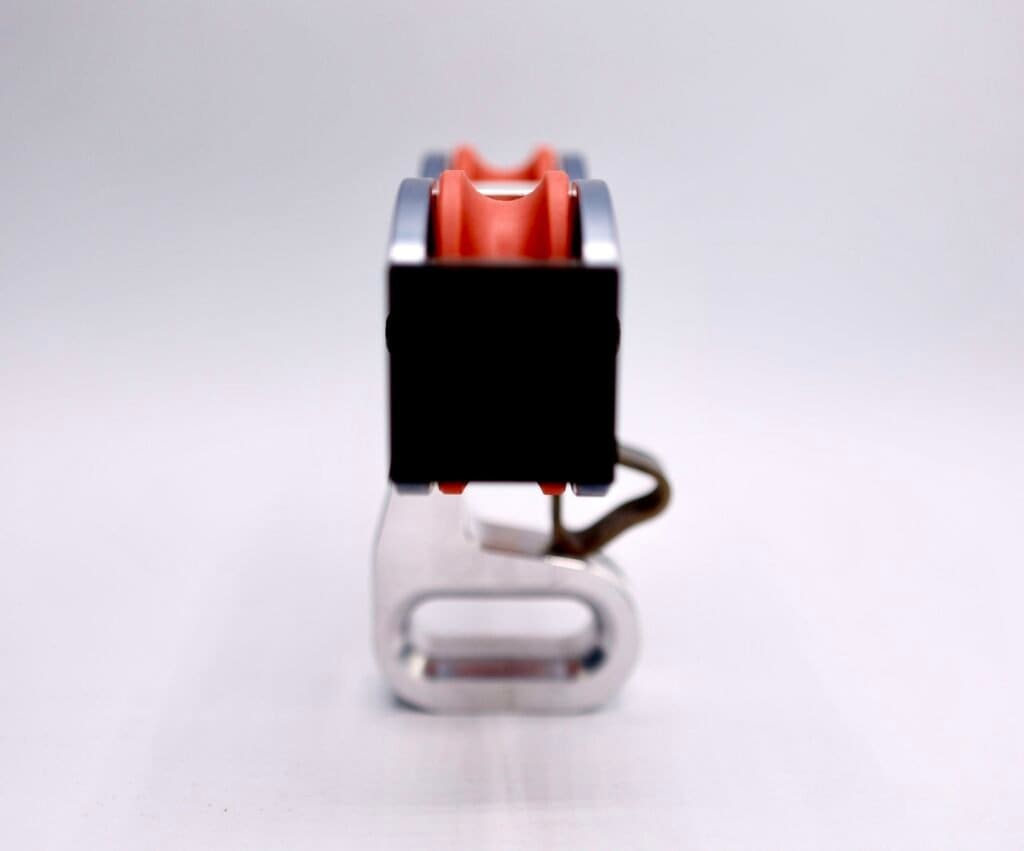

skyTECH Turbine

Construction

Our smaller zipline trolley, designed for 1/2″ and 5/8″ cable and lightweight to be clipped to the guest’s harness without them knowing it’s there. The skyTECH Turbine trolley is made from CNC-machined aluminum and stainless steel and assembled with mechanical mates and stainless steel hardware to eliminate any welds or bends that may represent weak points in the trolley’s structural integrity. Acetal impact plate can withstand impacts at high velocities. Oversized wheels made with a special Nylon compound with dual sealed bearings allow for a smooth and quiet ride at high speeds while extending cable life by up to 500% by eliminating metal-on-metal contact.

A spring loaded stainless steel gate allows simple one-handed installation and removal of the trolley on the cable. The modular design of the trolley allows every component to be easily repaired or replaced by the end user, as opposed to needing to replace the entire unit, unlike similar trolleys in the industry.

Design

Stainless Steel Hardware

  • The use of stainless steel bolts, axles, and gate ensures the trolley can withstand any weather and have a service life of 5 years.

Seamless Integration

  • The Turbine trolley is designed to work seamlessly with the skyTECH Universal E-Launcher.
  • The acetal bumper is designed to withstand the impact when contacting the skyTECH Turbine Catch Block and be retained by its swingarm.

Easy-Connect

  • The Turbine trolley features a simple spring-loaded gate design that snaps onto the cable quickly and reliably. Installation and removal of the trolley is a one-handed operation.

Single-Point and Twin Setups Available

  • When using the Twin setup, the Turbine trolley incorporates the use of a crossbar and dual attachment points, minimizing rider twist and allowing the guest to stabilize themselves during flight.
  • With the single-point configuration, the Turbine can be connected to any rated single-point harness.

Crossbar Grip

  • The use of a crossbar allows the guest to have a conveniently located grip and support for braking at higher speeds.

Secondary Attachment

  • A secondary attachment point is used to connect backup tethers from the guest’s harness as well as provides for complete encapsulation of the cable, eliminating the risk of derailment.

Dovetail Primary Connection

  • Slings are installed into the turbine trolley and secured with a dovetail connection and two securing bolts. This allows all the force to be transmitted through the primary structural components rather than the bolts.
Safety
  • Rated to a max load of 22kN
Documentation

Operator’s Manual – Turbine Trolley

Able to reach speeds of up to 60 mph (100 km/h), the skyTECH Turbine can tolerate high impact braking, propelling it ahead of traditional Petzl or Robertson zipline trolleys. A two-point connection system allows for efficient loading and unloading, while a principal support carabiner is not needed.

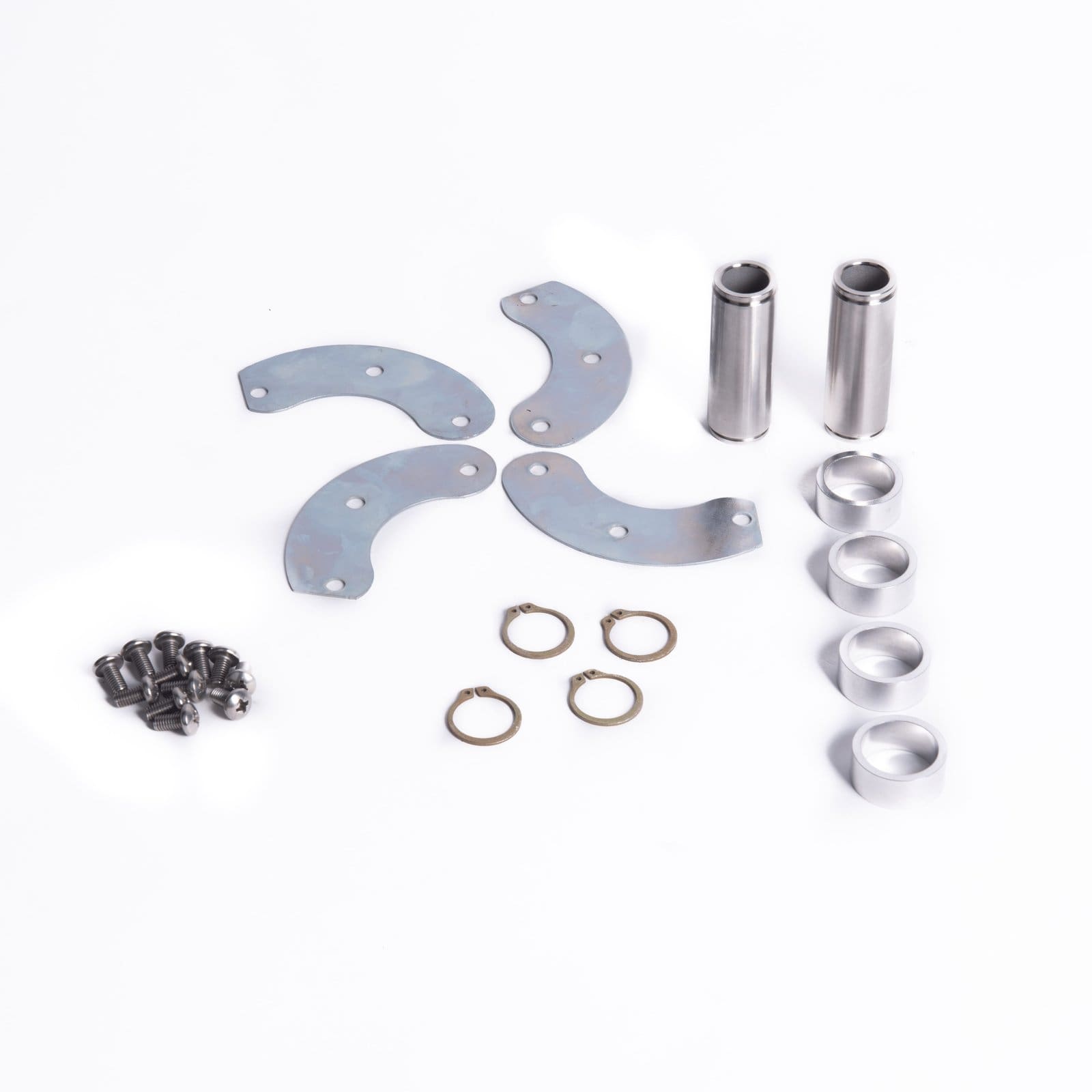

Wheels, bearings, and other components can be replaced in the field, simplifying maintenance and reducing operating costs. ​The commercial zip line trolley integrates oversized wheels and twin sealed bearings for a smoother ride.

Its flat impact plate locks with the skyTECH Turbine Catch Block upon landing. The trolley is then safely locked so retrievals aren’t necessary. It works with the skyTECH Spring Brake and/or Zipstop.

NOTE: Colour of the Turbine Trolley is typically RED.
